          1. 快速導讀:鋼絲繩電動葫蘆、多功能提升機千斤頂

            環鏈電動葫蘆

            DHP慢速環鏈電動葫蘆

            DHP慢速環鏈電動葫蘆

            產品名稱:DHP慢速環鏈電動葫蘆

            產品分類:環鏈電動葫蘆

            產品描述:

            DHP環鏈電動葫蘆又叫建筑爬架電動葫蘆、群吊電動葫蘆是一種輕小起重機械,這款環鏈電動葫蘆采用盤式制動電機作動力,行星齒輪減速器,具有提升速度快,運轉平穩,機件緊湊,體積小,重量輕,操作方便,外形美觀等特點。本產品嚴格按國家3包執行,產品質量由中國人民保險公司(PICC)承保,請放心使用。

            詳細介紹:

            DHP環鏈電動葫蘆又叫建筑爬架電動葫蘆、群吊電動葫蘆是一種輕小起重機械,這款 環鏈電動葫蘆采用盤式制動電機作動力,通過行星齒輪減速器減速,具有提升速度快,運轉平穩,機件緊湊,體積小,重量輕,操作方便,外形美觀等特點。

            使用范圍:

            由于在空 間較小的工作場所使用更是靈活迅捷,還適合于建筑工程領域的爬架,爬模的提升,大型油罐的群吊廣泛用于各行各業的加工車間、倉庫、碼頭、及各種現代化的生 產流水線,裝配線。在空間較小的工作場所使用更是靈活迅捷,安全方便,同時本產品還適合于建筑工程領域的爬架,爬模的提升,大型油罐的群吊。

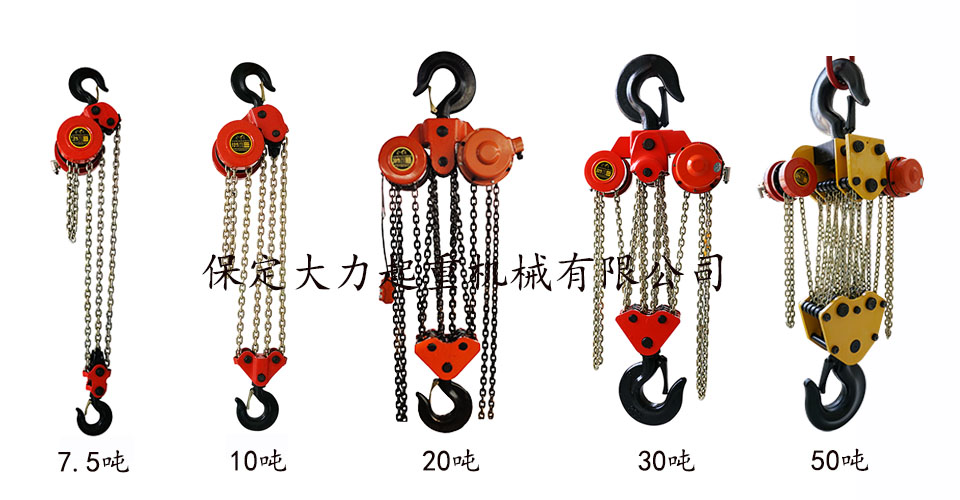

            DHP環鏈/群吊電動葫蘆細節圖展示:

            24小時手機服務熱線:15803222055

            DHP型環鏈/群吊電動葫蘆產品參數:

            型號

            DHP5

            DHP7.5

            DHP10

            DHP20

            額定起重量

            5

            7.5

            10

            20

            起升速度m/min

            0.18

            0.12

            0.09

            0.09

            實驗載荷t

            7.5

            9

            12.5

            25

            兩鉤間小距離mm

            600

            700

            780

            1000

            起重鏈行數n

            2

            3

            4

            8

            起升高度m

            3——9

            電機功率w

            200

            500

            500

            500

            電機轉速r/min

            710

            1380

            1420

            1420

            電源

            380V/50Hz

            凈重(5m)kg

            58

            ?

            ?

            240

            裝箱毛重(5m)kg

            69

            ?

            ?

            260

            裝箱尺寸mm

            560*400*400

            500*420*390

            610*480*480

            700*600*40

            注:起重高度每增加1米5噸增加4.5kg,7.5噸增加6.8kg,10噸增加9kg

            環鏈電動葫蘆其它產品:

            相關技術支持:


            點擊這里給我發消息
